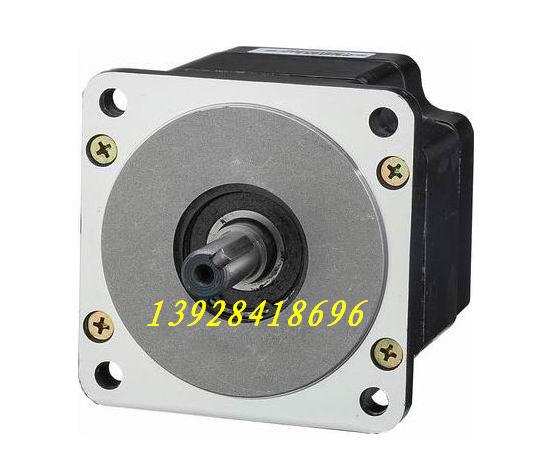

浜岀浉娣峰悎寮忔閫�(j矛n)闆绘(j墨)鏄庣窗(x矛)琛紙閫氱敤鍨嬶級
|
鍨� 铏�(h脿o) |
姝ヨ窛瑙� |
闆绘(j墨)闀�(zh菐ng)搴� |
淇濇寔杞�(zhu菐n)璺� |
椤嶅畾闆绘祦 |
鐩搁浕闃� |
鐩搁浕鎰� |
杞�(zhu菐n)瀛愭叄閲� |
闆绘(j墨)閲嶉噺 |
|
Model |
StepAngle 锛埪帮級 |
Length L锛�mm锛� |
Holding torque 锛�N锛�m锛� |
Current锛�A/phase锛� |
Resistance 锛埼╋級 |
Inductance 锛�mH锛� |
Rotorinertia 锛�g.銕�2锛� |
Weight 锛�kg锛� |
|
J42HB33-01 |
1.8 |
33 |
0.16 |
0.95 |
4.2 |
2.5 |
38 |
0.12 |
|
J42HB38-01 |
38 |
0.26 |
1.2 |
3.3 |
3.2 |
54 |
0.28 | |
|
J42HB47-01 |
47 |
0.32 |
1.2 |
3.3 |
2.8 |
68 |
0.35 | |
|
J57HB41-02 |
41 |
0.39 |
2.2 |
1.4 |
1.4 |
131 |
0.37 | |
|
J57HB51-03 |
51 |
0.72 |
3.0 |
0.74 |
0.9 |
275 |
0.65 | |
|
J57HB56-03 |
56 |
0.9 |
3.0 |
0.75 |
1.1 |
300 |
0.7 | |
|
J57HB76-03 |
76 |
1.35 |
3.0 |
1.0 |
1.6 |
480 |
1.0 | |
|
J86HB65-04 |
65 |
3.3 |
4.3 |
1.4 |
3.9 |
1000 |
1.7 | |
|
J86HB80-04 |
80 |
4.5 |
4.2 |
0.8 |
3.5 |
1400 |
2.3 | |
|
J86HB118-06 |
118 |
8.5 |
4.2 |
1.2 |
6.5 |
2700 |
3.8 | |
|
J86HB156-06 |
156 |
12 |
4.2 |
1.25 |
8.0 |
4000 |
5.4 | |
|
J110HB99-05 |
99 |
11 |
5 |
0.72 |
9.8 |
5500 |
5 | |
|
J110HB115-06 |
115 |
12 |
6 |
0.44 |
4.9 |
7200 |
6 | |
|
J110HB150-06 |
150 |
21 |
6 |
0.8 |
9.4 |
10900 |
8.4 | |
|
J110HB201-08 |
201 |
28 |
8 |
0.6 |
11 |
16200 |
11 |
