產品簡介

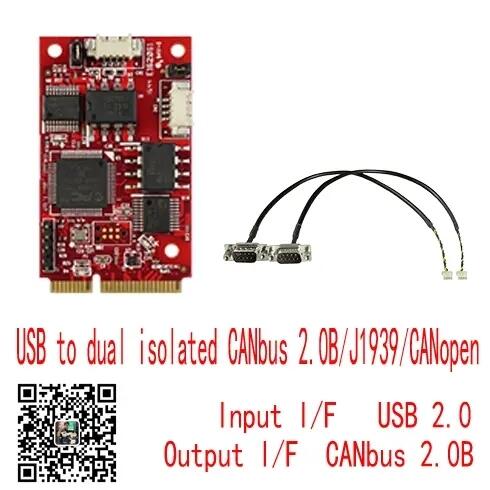

EMUC-B202 USB轉成CANbus 2 x DB-9 innodisk板卡
EMUC-B202 USB轉成CANbus 2 x DB-9 innodisk板卡
產品價格：￥
上架日期：2021-08-17 15:34:26
產地：臺灣
發貨地：北京
供應數量：不限
最少起訂：1個
瀏覽量：367
資料下載：暫無資料下載
其他下載：暫無相關下載
詳細說明

    通訊類

    宜鼎彈性擴充的通訊卡模塊系列，可針對工業系統提供穩定連接及帶寬，并滿足物聯網下裝置互連的需求。

    • 產品特色
      1. CANbus 2.0B backward compatible with 2.0A
    • 2. Support baud rate 100/125/250/500(default)/800/1000K
    • 3. Support CAN message acceptance filter
    • 4. Keep configuration after har**are reboot
    • 5. Up to 6000 CAN messages per second (receive data)
    • 6. Support Listen-only mode
    • 7. Additional driver to support Linux SocketCAN
    • 8. Support SAE J1939/CANopen high layer protocol (Optional)
    • 9. Termination resistor enabled/disabled by jumper
    • 10. Complies with EN61000-4-5 2.5kV Surge protection
    • 11. Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
    • 12. Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
    • 13. Supports 3rd?mounting hole and USB Pin header for out-ofminicard installation
    • 14. 30μ” golden finger, 3-year warranty
    • 15. Supports -40 to +85 degrees
    • 16. Industrial design, manufactured in Innodisk Taiwan

    規格：

    Module Name EMUC-B202
    Module Type USB to dual isolated CANbus 2.0B/J1939/CANopen
    Function CANbus
    Form Factor mPCIe
    Input I/F USB 2.0
    Output I/F CANbus 2.0B
    Output connector 2 x DB-9
    Power Consumption MAX : 3.33W (5V, 665mA; 3.3V, 1008mA)
    Dimensions (W x L x H/mm) 30 x 50.9 x 8.35
    Temperature Operation: W/T temp: -40°C ~ +85°C
    Storage: -55°C ~ +95°C
    Environment Vibration: 5G @7~2000Hz
    Shock: 50G @ 0.5ms
    Notes Download driver and API from MyInnodisk website.
    Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64bit), 10(32/64bit)
    Linux: Kernel 2.6 and above (Native CDC-ACM driver),
    Kernel 2.6.38 and above (SocketCAN Driver), 32/64bit QNX: 6.6

    產品料號：

    P/N Description
    EMUC-B202-W1 CAN2.0B, Wide Temp.
    EMUC-B202-W2 J1939, Wide Temp.
    EMUC-B202-W3 CANopen, Wide Temp.
